Contactor

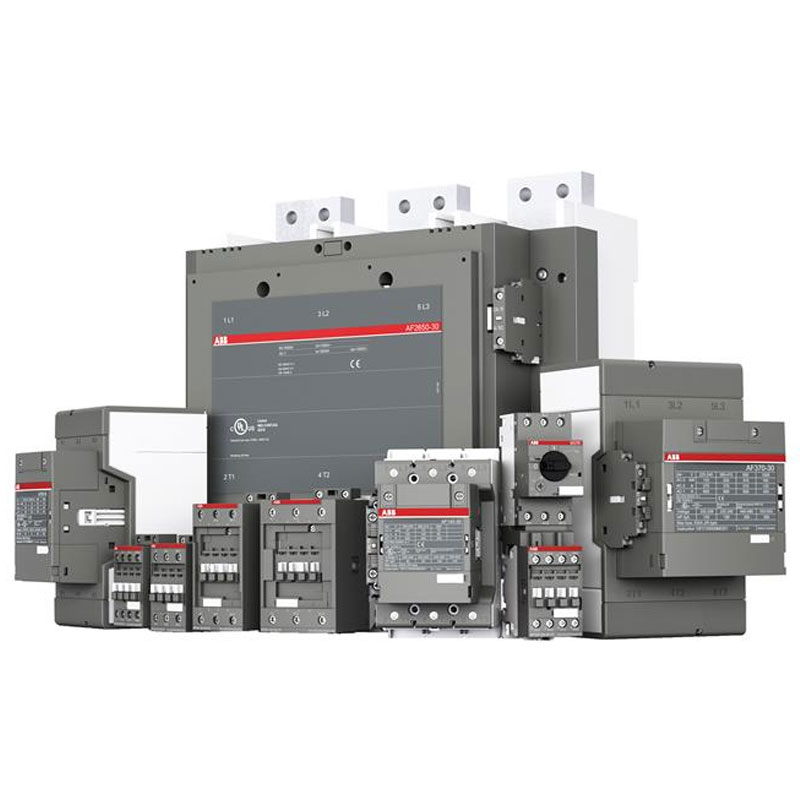

AF 3-pole contactors

Secure uptime and optimize stocks with AF latest technology up to 2650 A

Featuring AF technology as standard, AF contactors establish a new industry benchmark. The electronically controlled coil offers multiple benefits over conventional alternatives, and together with ABB’s wide product offering, an optimal configuration, every time.

Main benefits

• Optimize logistics and cut administration costs with fewer product variants to handle
• Access global support and use the same products in all parts of the world: the 100 … 250 V AC/DC coil covers all standard network voltages
• Push-in spring terminals offer only one push for extremely fast wiring: faster than ever installation, easier than ever wiring, reliable as ever connections
• A reduction of the coil’s energy consumption by 80% lets you save energy
• Secure your uptime by letting the AF technology overbridge voltage drops and sags.

Main features

• Up to 560 kW – 400 V AC-3, 900 hp – 480 V and 2650 A – 690 V AC-1, 2700 A – general use
• Only 4 coils cover 24 V – 500 V AC and 20 V – 500 V DC
• Screw, push-in spring and ring tongue connection types
• Built-in surge suppression
• Connection sets and interlock unit for reversing and star-delta starter for an easy, fast and secure assembly of starters
• Mirror and mechanically linked contacts.

MINI CONTACTOR

3-pole mini contactors

Compact and powerful

Mini contactors are ideally suited for applications where reliability is a must and space is at a premium. The dimensions, technical features and the variety of the assortment provide customers a high flexibility in a wide-range of applications.

Main benefits

• Flattest mini contactor on the market
• No noise in operation thanks to the hum free coil
• Energy and cost saving
• Flexible use in any position.

Main features

• Up to 5,5 kW – 400 V AC-3, 5 hp – 480V, 20 A – 400 V AC-1 and 16 A – general use
• 3 connection types available: screw, soldering pins and flat pins
• Mini-reversing contactor with built-in mechanical interlock available
• Special version with 1.4 W coil consumption for direct connection to PLC
• Integrated protective circuit with diodes and an additional surge suppressor.
